Assure high-quality big box mould carefully, attentively and painstakingly.

Big Box Mould

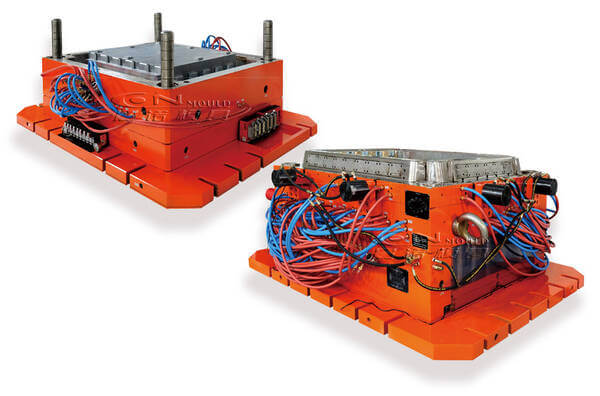

The big box mould in picture is made for American customers. Here are the parameters of this mould.

Product name    : Big box bottom top

Product weight   : 1.6Kg

Material         : PP

Shrinkage       : 1.8%

Mould size      : 2480*1980*1514mm

Mould weight    : 31T

Mould base steel      : 1730

Core and cavity steel   : 718H

The type of injection machine : HT2800T

Recycle time    : 160s


Chennuo Mould is a professional mould supplier for big box mould, have making various big box moulds. The above description is just one of the Big box Mould. A folding box includes side, bottom top, cover and foot. we can make all series of the mould for you.

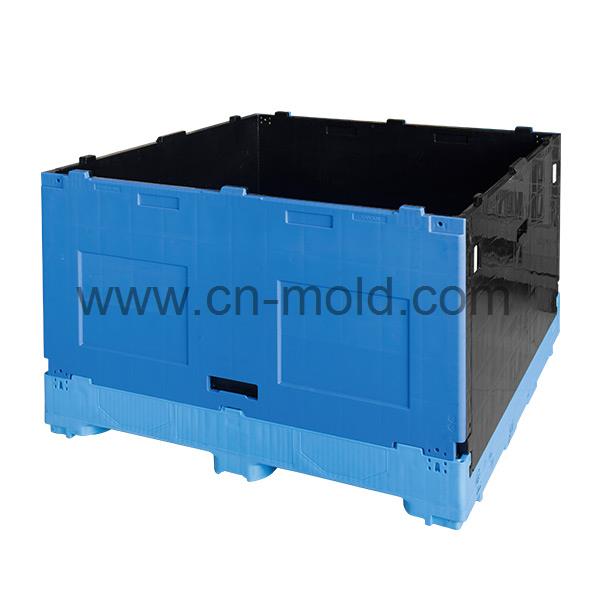

Big Box Mould - 01
Big Box Mould - 01

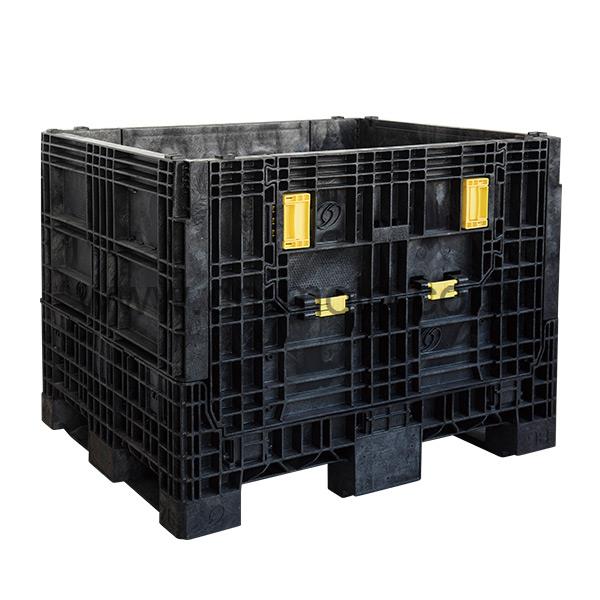

Big Box Mould - 02
Big Box Mould - 02
Big Box Mould - 03
Big Box Mould - 03
Big Box Mould - 04
Big Box Mould - 04
Big Box Mould - 05
Big Box Mould - 05
Big Box Mould - 06
Big Box Mould - 06
Big Box Mould - 07
Big Box Mould - 07
